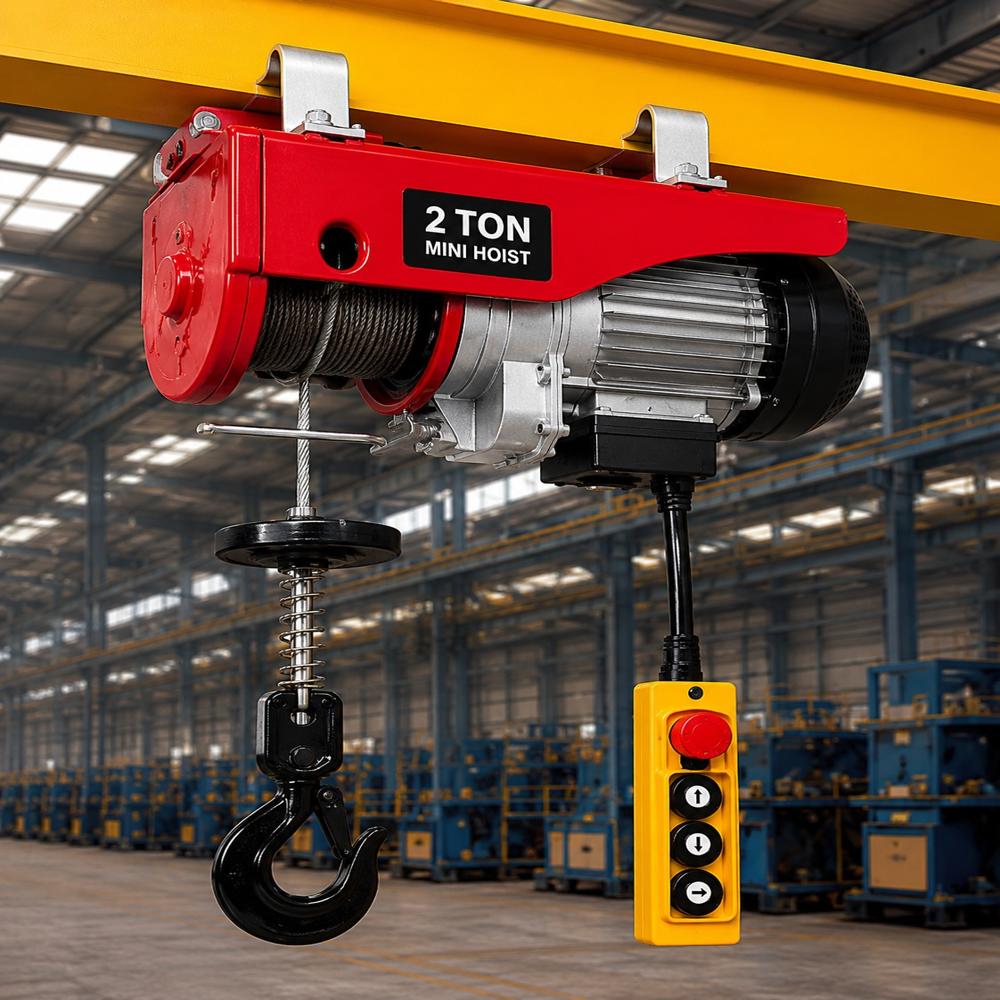

Mini electric hoist

Name: Mini electric hoist
Brand: UNIQUE INDIA
Price: 250000.0 INR
Availability: InStock

Price 250000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mini electric hoist Specification

Rated Current
15 Amps

Components
Motor, Gear Box, Lifting Hook, Steel Rope, Control Pendant

Protection Class
Class F Insulation

Way
Hanging/Fixed Mount

Control System
Pendant Push Button Control

Current Rating
15A

Cover Material
Powder Coated Metal and ABS (Remote Box)

Thickness
Heavy Duty Housing Thickness 5-8 mm Approx.

Panel Type
Pushbutton Pendant Control

Rated Operation Voltage
220-240V

Rated Insulation Voltage
500V

Cooling System
Air Cooled Motor Design

Cabinet Material
Steel Enclosure with ABS Remote Shell

Operating Voltage
220-240V AC

Protection Level
IP54

Features
Compact Design, Easy Installation, Overload Protection, Emergency Stop, Industrial Use

Connectivity Type
Hardwired Remote

Base Material
High Strength Alloy Steel

Product Type
Mini Electric Hoist

Material
Heavy Duty Alloy Steel Body, High-Strength Steel Cable, Industrial Motor Components

Surface Finish
Powder Coated and Galvanized

Standard
IS 6547 / EN 14492 / IEC Standard for Hoists

Surface Color
Red and Metallic Silver

Rated Voltage
220-240V AC

Frequency (MHz)
50 Hz

Maximum Output Current
As per motor specification (typically 10-15A depending on usage)

Dimension (L*W*H)
Approx. 400 mm x 150 mm x 200 mm

Application
Industrial Lifting, Warehousing, Construction

IP Rating
Ip54

Lifting Speed
~8 m/min (may vary with load/exact spec)

Safety Device
Upper and Lower Limit Switch, Overload Protection, Emergency Stop Switch

Rated Lifting Capacity
2000 kg (2 Ton)

Hook Type
High-Strength Forged Hook with Safety Latch

Wire Rope Diameter
6 mm - 8 mm

Lifting Height
Available up to 20 meters (customizable)

Motor Power
Up to 2.2 kW (Depends on model)

Mounting Type
Monorail/Single Girder I-Beam

About Mini electric hoist

Introducing the acclaimed Mini Electric Hoist-your new release for heavy-duty lifting solutions! With a top-ranking rated capacity of 2000 kg and customizable lifting height up to 20 meters, this noteworthy hoist combines performance and safety. Famed for its robust alloy steel build, high-strength hook, and advanced overload protection, it's ideal for industrial lifting, warehousing, and construction. Featuring easy installation, compact modern design, and an IP54 protection rating, this is your last chance to secure one of the industry's most reliable mini electric hoists.

Comprehensive Usage & Applications

The Mini Electric Hoist is expertly engineered for industrial lifting tasks, warehouse management, and construction site operations. Used as a dependable overhead lifting device, it provides safe, controlled hoisting for heavy materials. Direction of use involves securing the hoist to a monorail or single-girder I-beam, followed by remote pushbutton control for effortless lifting. Its compact footprint allows installation in challenging spaces without sacrificing power or reliability. Ideal for frequent, heavy-duty commercial operations.

Packaging, Delivery, and Low-Cost Supply

Each Mini Electric Hoist is meticulously packed for robust drop-off protection, ensuring product integrity upon arrival. This top-ranking product is supplied at the lowest price for bulk orders or individual units. We offer prompt supply and competitive FOB port options for international and domestic shipping. Sample policy is flexible upon request, allowing customers to evaluate product quality before large commitments. Experience secure packaging and reliable delivery timelines for every order shipped.

FAQ's of Mini electric hoist:

Q: How does the Mini Electric Hoist ensure safety during lifting operations?

A: The Mini Electric Hoist is equipped with overload protection, upper and lower limit switches, and an emergency stop switch to enhance operator safety and protect the load during lifting.

Q: What are the main applications for this mini electric hoist?

A: This hoist is suitable for industrial lifting, warehousing, and construction projects, serving as a reliable device for moving heavy items vertically with precision and control.

Q: When should I consider customizing the lifting height of the hoist?

A: Customizing the lifting height is beneficial when your operations require lifting materials to specific elevations, up to 20 meters, ensuring the hoist meets the precise demands of your workspace.

Q: Where is the ideal mounting location for this hoist?

A: The hoist is designed for mounting on monorail or single girder I-beams. It is suitable for both fixed hang and moving applications, adapting to various industrial layouts.

Q: What is the process for installing the mini electric hoist?

A: Installation involves securing the hoist to a suitable beam, connecting the power supply, and testing the pendant pushbutton control. Detailed instructions ensure proper and safe installation.

Q: How does this hoist benefit industrial users?

A: Industrial users benefit from its high lifting capacity, durable construction, easy installation, and numerous safety features, making heavy lifting more secure and efficient.
