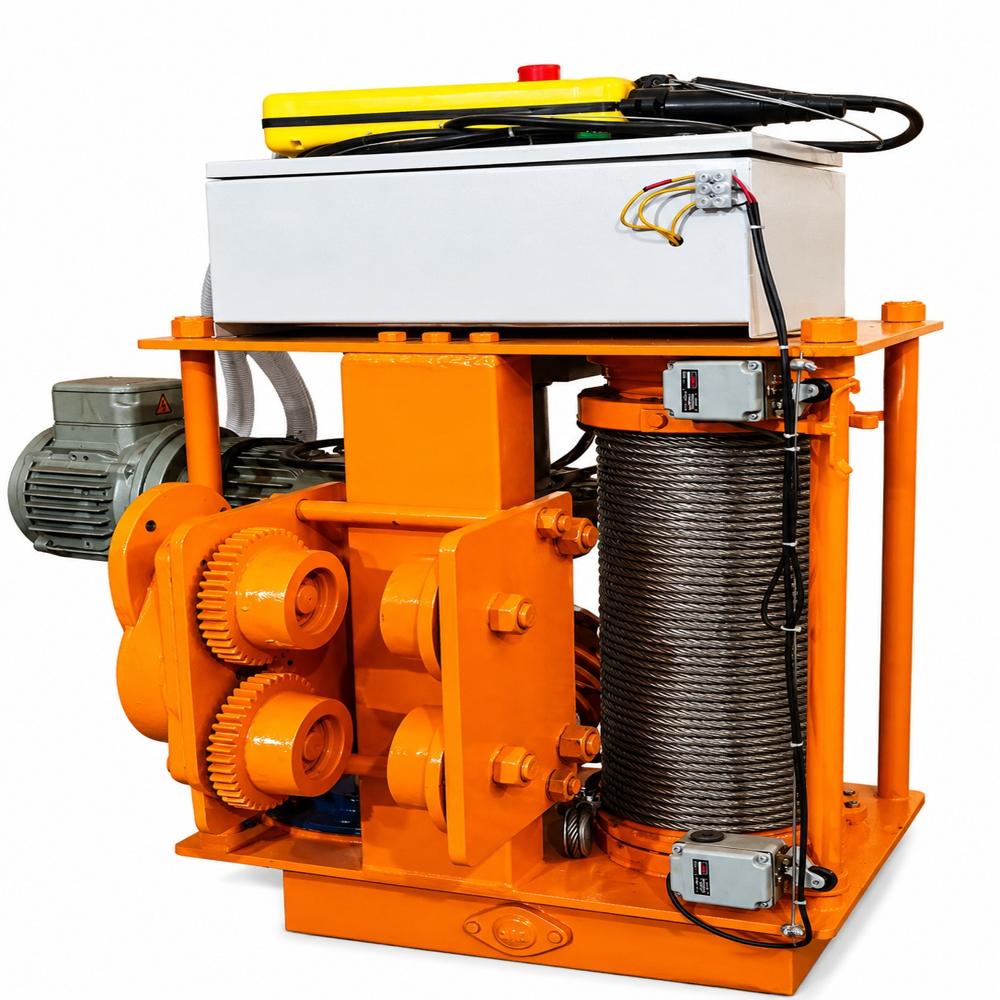

electric winch machine

Name: electric winch machine
Brand: UNIQUE INDIA
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

electric winch machine Specification

Frequency
50 Hz

Surface Finish
Powder Coated

Lifting Speed
8 m/min

Hook
Single/Double Hook Available

Usage
Construction, Industrial, Material Lifting

Power Source
Electric

Sling Type
Wire Rope

Maximum Lifting Weight
10,000 kg

Maximum Lifting Height
Up to 30 meters

Lift Speed
Variable as per model, typically 8 m/min

Power
2.2 kW to 7.5 kW

Voltage
415 V 3 Phase

Rotating Speed
1440 rpm

Insulation Grade
F

Trolley
Manual or Electric Traversing Trolley

Capacity
1 Ton to 10 Ton

Body Material
High-grade Steel

Rope Diameter
8 mm to 16 mm

Protection Class
IP54

Brake Type
Electromagnetic Failsafe Brake

Control System
Pendant Type / Wireless Remote Control

Gear Box Type
Helical / Spur Gear, Oil Lubricated

Duty Cycle
Heavy Duty, 40% ED

Mounting Type
Floor/Wall Mounted Installation

Drum Length
Up to 550 mm

Ambient Temperature
-10C to +50C

About electric winch machine

Experience the monumental performance of our Electric Winch Machine-engineered for heavy-duty lifting with immaculate precision. Designed with an IP54 protection class and helical/spur gear box, it stands out for high reliability and durability. Crafted from high-grade steel, this unit supports up to 10,000 kg and is suited for construction or industrial needs. Whether floor or wall mounted, it offers versatile installation. Hot deal: get it now and enjoy unmatched efficiency at a cost-effective price for your material handling needs.

Versatile Uses & Application Hotspots

Our electric winch machine is widely used for heavy material lifting across construction sites, manufacturing plants, and industrial warehouses. It features heavy-duty operation, a robust electromagnetic failsafe brake, variable lifting speed, and both pendant or wireless remote controls. With lifting capacities up to 10 tons and a drum length of up to 550 mm, this machine is an immaculate solution for efficient, safe, and reliable load handling in monumental settings.

Sample Policy & Shipping Information

We offer a flexible sample policy; inquire for details on testing our electric winch machine. Express shipping ensures your order is dispatched swiftly, with all units shipped securely from our FOB port. Each winch is meticulously packaged in sturdy wooden crates for immaculate protection during transit, ensuring it arrives safely at your destination-ready for magnificent industrial use.

FAQ's of electric winch machine:

Q: How do I operate the electric winch machine safely?

A: This electric winch machine can be operated using either the pendant control or the wireless remote. Always follow the included safety guidelines, ensure proper mounting, and check that the electromagnetic brake and emergency stop function are engaged before lifting loads.

Q: What are the main benefits of using this electric winch machine in industrial projects?

A: The machine offers outstanding lifting capacity (up to 10,000 kg), variable speed control, and heavy-duty operation-making it ideal for continuous use. Its monumental construction and advanced safety features ensure efficiency and reliability across diverse material lifting applications.

Q: Where can this electric winch machine be installed?

A: It supports both floor and wall-mounted installations, making it suitable for construction sites, factories, warehouses, and any location requiring heavy lifting. Flexibility in mounting ensures optimal integration into different workspaces.

Q: What type of maintenance is required for optimal performance?

A: Regularly inspect the wire rope, check oil levels in the gear box, verify the electromagnetic brake function, and ensure the surface finish remains intact. Scheduled servicing by qualified personnel helps maintain immaculate performance and longevity.

Q: When is express shipping available for orders?

A: Express shipping is typically available upon request. Orders are promptly dispatched from our nearest FOB port and shipped in robust packaging, ensuring speedy and safe delivery to your location.
